Blind Motor GJ56 Air

Technical Information




Assembly

Here you will find useful documents for dimensioning and assembling the Venetian blind actuator.

Dimensioning diagram of the drive

Installation and start-up instructions

The required motor torque can be determined as follows:




COMISSIONING

Initial commissioning

After the power supply is switched on, the device will automatically be in learn mode for 30 minutes.

Re-learn in procedure

Similar to initial learn in, after the power supply is switched on, the device will automatically go into learn mode for after 2 minutes of not connecting to an Airbase. The learn in mode will then be active for 10 minutes.

For full instructions on learning in Loxone Air devices .

Once the device has been learnt in, the device will be listed under the I/O tree.

To use the blind drive, simply drag it onto a program page.







Also the Geiger transmitter LC Air (wall and hand transmitter) can communicate directly with the Miniserver GO or the Air Base Extension. For this, however, the device must be placed in the Loxone mode and then into the learning mode. To do this, remove the battery and set the switch on the board inside the device to “LX”. As soon as the battery is inserted again, the learning mode starts automatically.

The further teach-in functions as in the case of the Remote Air.

Adjust the end positions

After the motor has been connected and learned into the Airbase, the end positions must now be defined.




Depending on the installation of the blind drive, the direction of rotation may be different. For this reason, the blinds should be in a central position when teaching the end positions so that the blind can travel in both directions without encountering an obstacle.

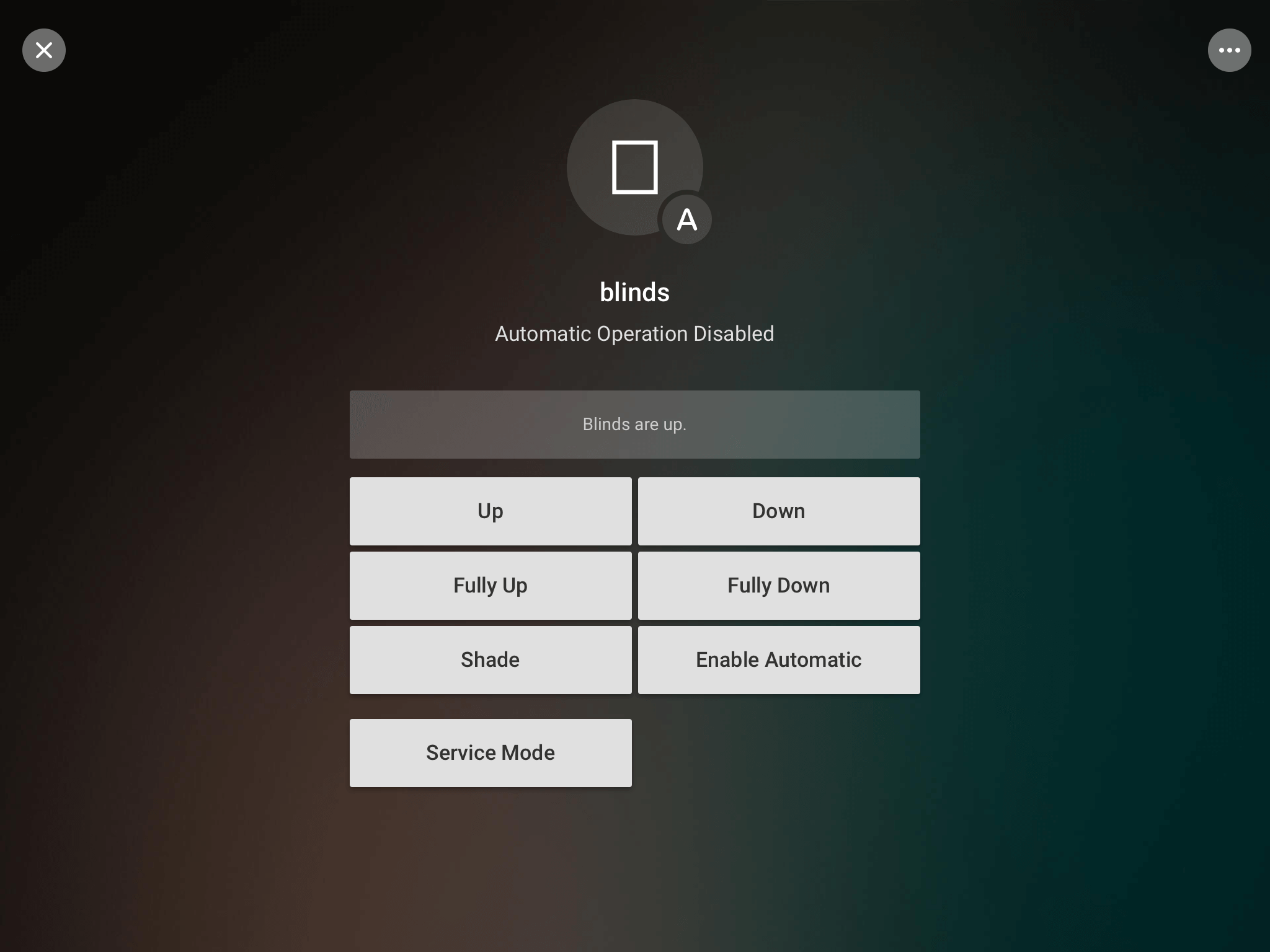

To learn in the end positions you will need to activate the ‘Service mode’ in the app (App version 7.4).




Once the service mode has been started, you can use the buttons in the app to change the position of your shading.
Once the end position has been reached, save it using “End position”.




First the lower end position must be adjusted, then the upper end position. Use the service mode of the Loxone Smarthome App.

Each end position can be learned independently from the other with or without a mechanical override switch.

The blind drive confirms the learning of the lower end position with “clack-clack”, the upper end position and thus the end of the end position storage is confirmed by “clack-clack-clack-clack”. Between the learning of the lower end position and the learning of the upper end position one has 2 minutes time, otherwise the previously set values (or the factory state) are restored – in this case, the blind drive signals this through 6 “clack” noises.

Once the end positions have been learned, the service mode in the app can be closed.

If you want to re-learn the end positions, you can restart the learning process by switching the motor off and after 30 minutes the service mode can be activated again.



No end positions are set in the delivery state!



Programming in Loxone Config

The programming and actuation of the Venetian Blind Actuator GJ 56 Air is carried out with the Function Block “Automatic Venetian Blind Integrated”.

Just pull across the GJ 56 Air from the periphery tree onto the program page. The motor is now linked directly to the block and you can control the drive without additional outputs.


You can find more information about the automatic shutter programmer here.

The following status outputs of the GJ 56 Air Venetian blind actuator are shown at the “Automatic blind integrated” block.


Slat adjustment travel correction

Loxone practice tip

Preparation




Before you start the correction, attach a piece of wire to one of the slats.

STEP 1:




Tilt the slats by approx. 45 ° (guide value). Align the previously attached wire horizontally. If necessary, check with a spirit level whether the wire is also aligned horizontally. Save the slat position.

STEP 2:




In step 2, place the slats in the exact same position as in step 1. The previously attached wire should be brought back into the horizontal position. If the slats are too much inclined, you can start the process again, otherwise save the slat position.

>> General information about Loxone Air technology can be found here <<

Original installation and operating instructions together with EC declaration of conformity for the Venetian blind actuator GJ56 Air (pdf)
Download
