Caller Service

With the Caller Service, it’s possible to configure the Miniserver to call you whenever a value changes. For example, if the temperature of a sun room rises too high



LICENSE KEY

Once you have purchased your Loxone Caller Service you need to register the license key. Find out how to do this here!

INSERT CALLER

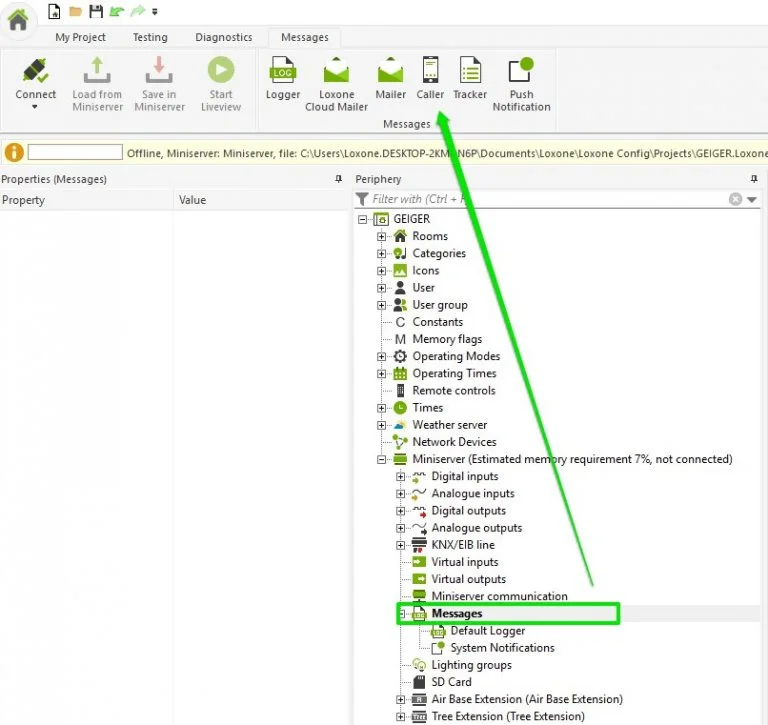

Under messages in the periphery tree, you can create a caller and then be able to use that throughout your config.

Loxone_Online _serveces_call.jpg



Once added, you get a caller that you can then drag onto a page.

Loxone_Online _serveces_call2.jpg



EXAMPLE

The Caller could be used, for example, for temperature monitoring. If the temperature rises past a predefined limit, then you’ll get a phone call and email.

Loxone_Online _serveces_call3.jpg



FEEDBACK FUNCTION

If you activate the ‘Allow Response’ option in the Caller, then ringing back and pressing a number (0-9) sends that number to a virtual input on the Caller. You must call back within 2 minutes of being called.

If you press 3 whilst being called by the Caller, an impulse is sent to the ‘CVI3 Input’.

You could use this function, for example, to reset a burglar alarm if it goes off.

Loxone_Online _serveces_call4.png

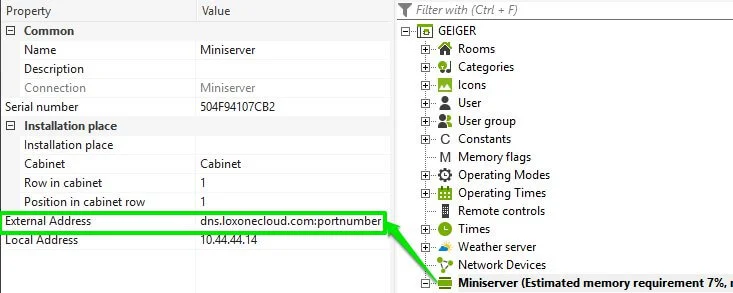

To use the feedback feature, the Miniserver needs to be contactable from the outside. You must, therefore, specify the external address of the server in the properties of your Miniserver.

Loxone_Online _serveces_call5.jpg



CALLER DETAILS

Here you can enter the messages that you want to be called with. When you are called up, a computerised voice will read the message out.
Please take care with the format of the telephone number e.g. 004372877070
For the Caller Service to function, it is vital that the DNS Server is registered. In a dynamic network, this is normally assigned automatically.

You can assign the DNS Server manually using the admin interface.



Loxone_Online _serveces_call6.jpg

TROUBLESHOOTING

If your Miniserver does not make calls despite the activation of the Caller Service please note our information about error handling.
