Combined Window Contact

BASIC FUNCTION

The module enables the combination of up to three sensors, used for open, tilted and locked. The correct analog value that is obtained from the input window monitoring is needed to correctly determine the window position.




BASIC PROGRAMMING

Configuration of the two sensors

In order to ensure the correct calculation of the analog value (composite signal), the positions of the two contacts on the window must be stored in the Config.




• Door / window contact open Position “/” Door / window contact tilted Position ”
Handle side down : Sensor below window wing (on handle side down)
Handle side Top : Sensor above window wing (on upper side of handle)
Hinge side top : Sensor on hinges (top side of hinge)

OVERVIEW ALLOWED CONFIGURATIONS (Iw and It):

At Iw and It, the default inversion of the input is already taken into account.
Example: Iw = 1 = closed


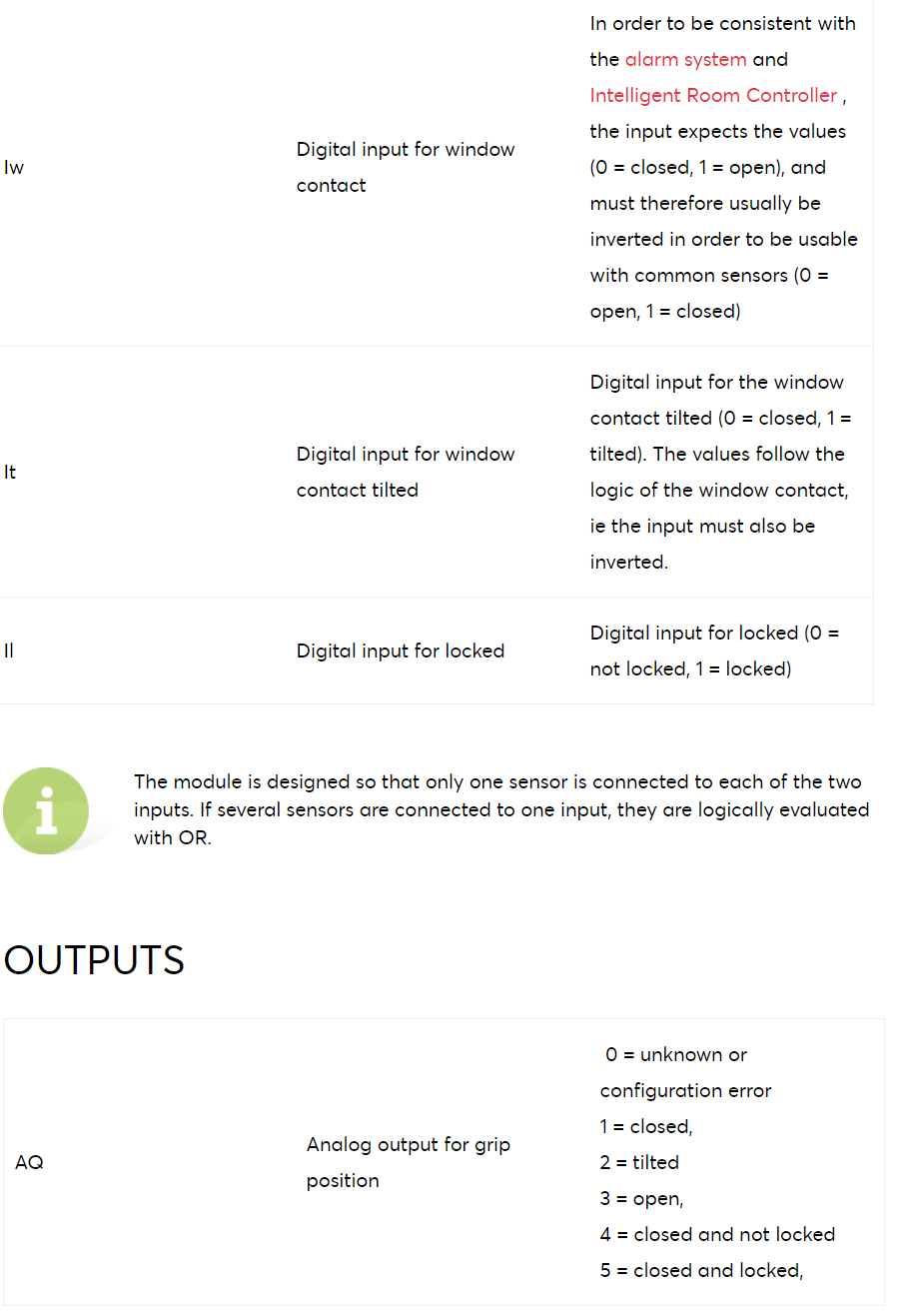

INPUTS
