Communication with RS232/485

SETTINGS

The following settings for the RS-232 and RS-485 extensions can be modified in the Properties window.


All RS-232 and RS-485 communication will be transported via the RS-485 bus to the Loxone Miniserver. Frequent queries of data (more than several times per second) can lead to an overload of information where command execution could be delayed. Please therefore check with the device information whether data must be queried at a high frequency or whether several queries per second are sensible.

MONITOR

The RS-232/RS-485 Monitor can be activated by ticking ‘RS-232/485 Monitor’ in the Miniserver tab.

For RS-232/RS-485 extensions each received byte is, by default, displayed on the monitor in ASCII format. By checking ‘Hex’, the hexadecimal value of each received byte will be displayed instead.

SENSOR

Whether an RS-232 or RS-485 sensor takes a digital or analogue input can be defined in the Properties window for that sensor by ticking ‘Use as digital input’, or leaving un-ticked as appropriate.

In the Properties window under ‘command recognition’, a character string can be entered. The digital input places a pulse at the output if the received data contains the command recognition string. For the analogue input, any value can be taken from the received data.

The string is interpreted as ASCII characters.

A sensor can receive up to 512 characters.

If checksum is used, command recognition works only if the corresponding checksum has been received correctly. Checksum may not be used for command recognition.

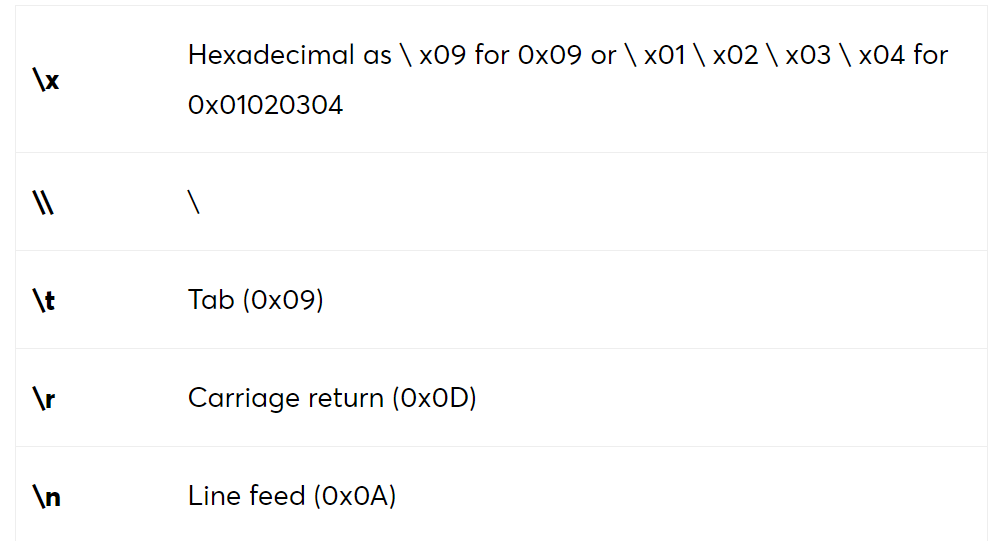

SPECIAL CHARACTERS FOR COMMAND RECOGNITION WHEN USING DIGITAL AND ANALOGUE INPUT

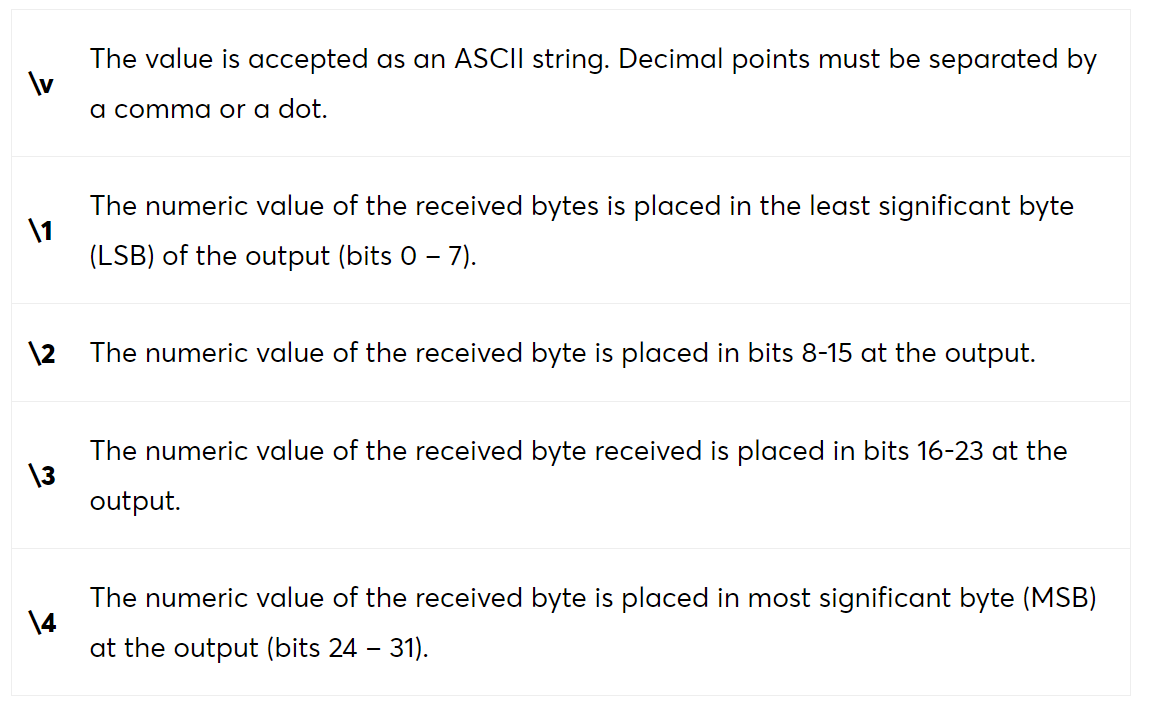

SPECIAL CHARACTERS FOR COMMAND RECOGNITION WHEN USING A ANALOGUE INPUT

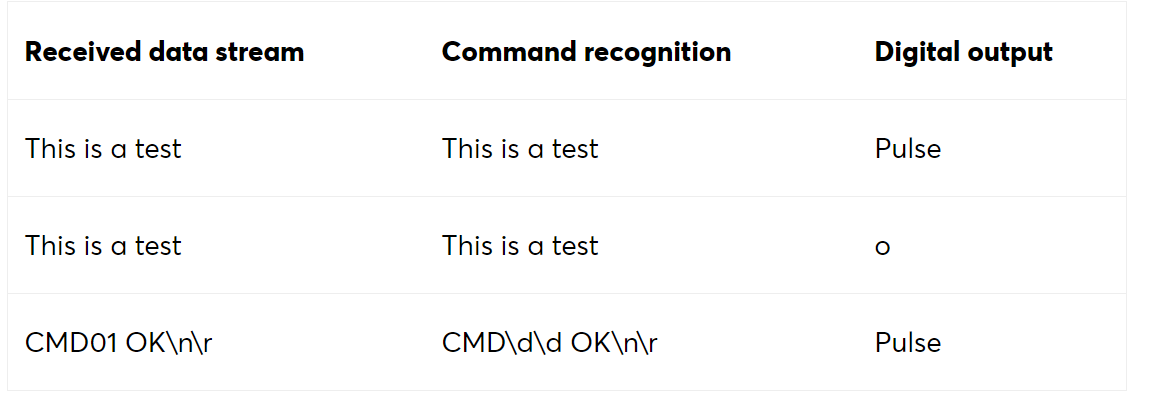

EXAMPLES WITH DIGITAL INPUT

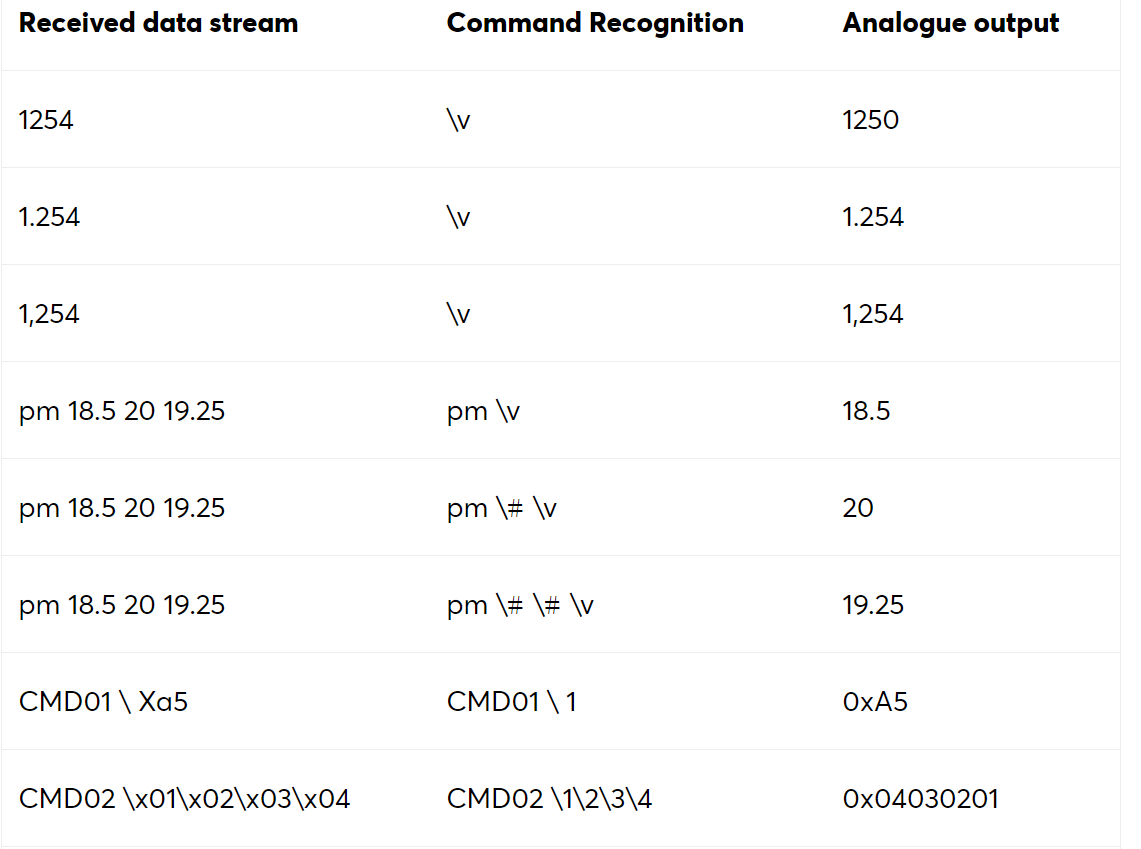

EXAMPLES WITH ANALOGUE INPUT


ACTUATOR

Whether an RS-232 or RS-485 relay takes a digital or analogue input can be defined in the Properties window for that relay by ticking ‘Use as digital input’, or leaving un-ticked as appropriate.

In the Properties window under ‘Command when ON’ or ‘Command when OFF’ , a character string can be entered. Upon activation/deactivation the digital output sends the appropriate string to the RS-232 interface. For analogue output, the value at the relay input can be forwarded (for any input variation) and placed at the RS-232 output.

The string is interpreted as ASCII characters.

A sensor can receive up to 256 characters.

If checksum is used, the appropriate checksum is calculated and inserted into the data stream to be sent.

SPECIAL CHARACTERS FOR DIGITAL AND ANALOGUE OUTPUT


SPECIAL CHARACTERS FOR THE ANALOGUE OUTPUT


EXAMPLES OF DIGITAL OUTPUT


EXAMPLES OF ANALOGUE OUTPUT
