Door and Window Monitor

BASIC FUNCTIONALITY

The Door and Window Monitor is used for monitoring and displaying the states of windows and doors. By using this block, you will be able to set up alerts if anything has been left open before leaving or just set it up so that the user can glance at this block before they leave to ensure that they have secured their house.


BASIC CONFIGURATION

Once you have added the Window and door monitor block to a page you will then have to add the contacts it will be monitoring.  By double-clicking on the block, you will be open a window that will allow you to select which window/door contacts to monitor. This allows you to split floors up should you wish, or even exclude windows entirely.

You must connect any Window Handle Airs manually to the input Alw and any 3rd party window contacts have to be connected to lw.




With this block, you also have some outputs that can provide information on which contacts are currently open and also some further stats such as last triggered sensor and number of secured windows.

INPUTS AND OUTPUTS

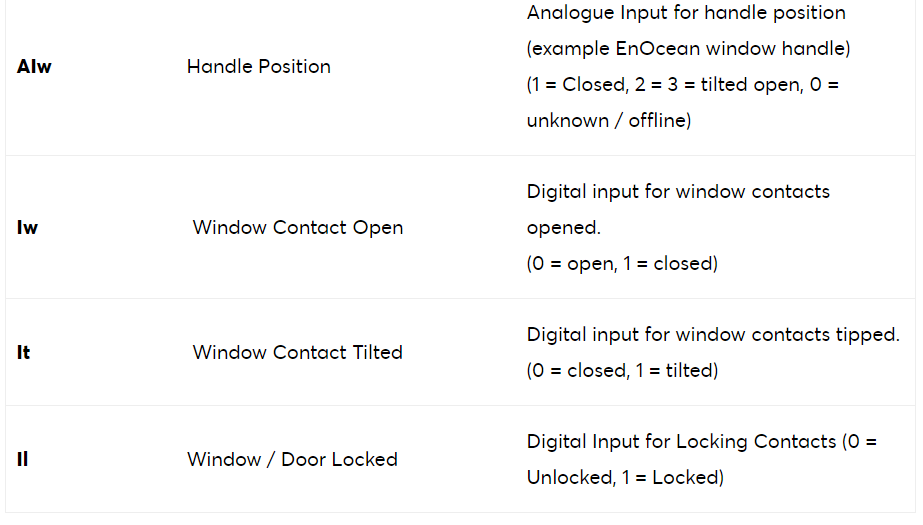

INPUTS


OUTPUTS
