Dimmer Extension


  • Universal dimmer with 4 dimming channels
    • Channel 1: 400 Watt, channels 2 to 4: 210 Watt
    •  1030 Watt Total load
    •  Designed for resistive, capacitive and inductive loads
    •  Low loads are dimmable: no minimum load with trailing edge dimming (high voltage LED dimming, incandescents)
    •  Minimum load with leading-edge dimming (inductive loads): 50 Watt
    •  Wave packet control specifically suited for mains LEDs (no minimum load)
  • Power Consumption: Approximately 0.06 Amps
  • 8x digital inputs 24VDC
  • (For connecting to switches or window contact switches)
  • The 24VDC supply on the digital inputs is rated at 100mA, it is not intended for high loads.
  • Simple to connect to the Loxone Link
  • Ambient temperature: 5°C to 40°C, air vents must be kept clear!
  • Dimensions: 156 x 88 x 57mm (T9 housing)
  • Powered with a 24VDC power supply
  • Protection: IP20
  • Safety shutdown: If the CPU temperature increases over 79°C, all the dimming outputs are turned off. Once the temperature drops below 64°C, the respective dimmed outputs are turned on. The CPU temperature is updated on startup and if there is a temperature change of more than 5°C.

 When calculating the number of lights that can be powered on one dimmer you MUST account for inrush current, information on inrush for the lights being used will be available from the light manufacturer.










N.B. All LEDs differ in performance, the only way to be sure of performance with our Dimmer Extension is to test before installation.

You can dim all 230V LED bulbs marked as dimmable with the Loxone Dimmer. Due to the electronic control LED bulbs require different correction values on the Dimmer to allow for smooth dimming. This list should help you find suitable LED bulbs and their correction values.



* Please note that mains LEDs can often vary in quality between production batches.


Our database is constantly being expanded. If you have LED bulbs that you are using with the Loxone Dimmer that are not listed here then please contact support with all the details of your LED lamps so we can look into adding them in the list.


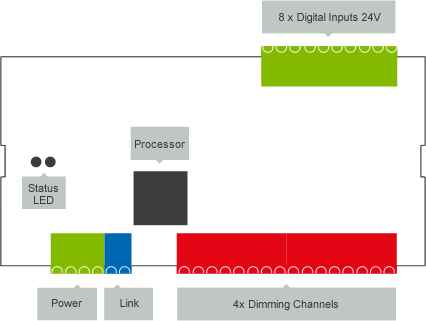

  • Mount the Dimmer Extension on the DIN rail
  • Connect 24V DC power supply, but do not switch on until the whole installation is completed
    (We recommend looping through the Miniserver)
  • Connect the inputs and outputs
    (We recommend splitting the channels of the dimmer across 3 phases)
  • Connect the Loxone Link
  • Note: If it’s the last extension, terminate the Loxone Link with a 120Ω resistor (included with the Miniserver)
  • Turn on the power supply
  • After a few seconds, the left LED will flash green if the extension is already configured, or orange if not


  • Inductive loads (e.g. conventional transformers) and capacitive loads (e.g. electronic transformers) must not be interconnected!
  • Conventional transformers must be loaded with at least 80% of the nominal load with lamps.
  • The Dimmer Extension is not suitable for speed control of motors, since back EMF with voltage spikes of over 300 V causes permanent damage. If you have any questions regarding this please contact Support.
  • When using the Dimmer for mains LEDs each channel should be de-rated by 50% due to the high inrush currents. This means that the first channel would be rated at 200 Watts and the other channels at 105 Watts.

Make sure that your bulbs are labelled as dimmable – especially with energy saving bulbs and LEDs.


The Loxone Dimmer Extension is an RLC Dimmer. That means you can dim resistive, inductive and capacitive loads.

When the left status LED on the Dimmer extension is red, the measurement of the frequency of the dimming channels is being performed.


You can change what type of load is being dimmed.




If an incoming value is outside the range (0 to 10) for instance 0-100% with 0-10VDC, this can be adjusted for using the corrector.



Correction example for a dimmer

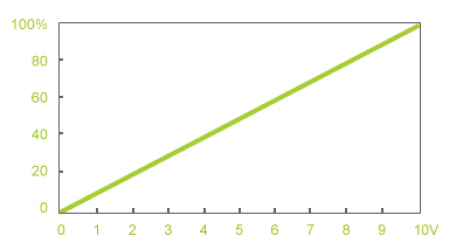

The analogue output from the dimmer function block gives out a 0-10V signal, the output of the Dimmer Extension is 0-100%, so the corrector must be used for the scaling to be correct. The scaling is linear. If 1V at the analogue output corresponds to 10%, then the following settings must be used:

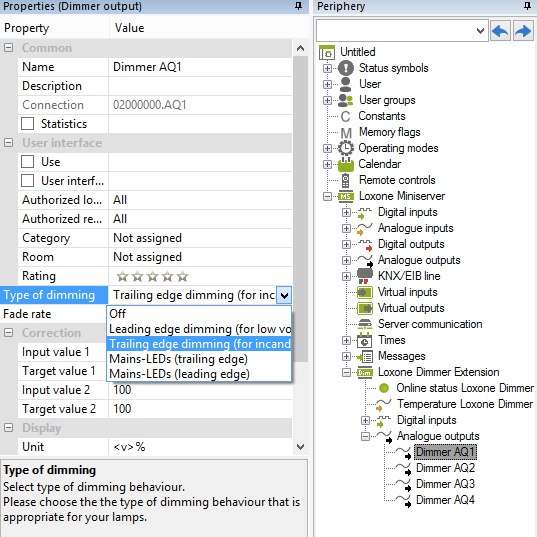

In the section ‘Display’, you can choose the desired units. It can be useful to read the help window, as shown in the screenshot.

If you want a status display of the output, then tick the box next to ‘Show status only’.
