Gate Overview

USE

With this block, you can send outputs to all other gate controllers with ease.




BASIC PROGRAMMING

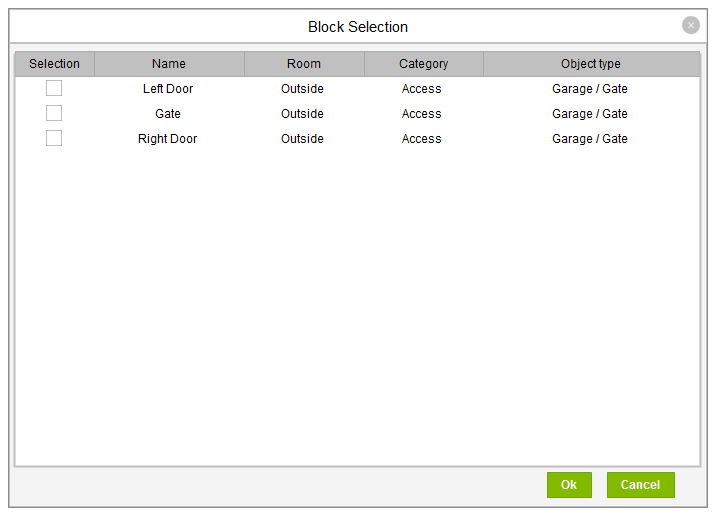

By double clicking on the block, you will open the following window:




You can select the blocks this block can control. For the Garage/Gate Overview, these will all be Garage/Gate Blocks.

Overview commands are also not blocked by an active Dis input on the respective module. The Dis input only refers to the input connections on the left side of the blocks themselves. The function blocks can still be operated via the app and the overview block.

If a function block is controlled by an overview block, this is indicated by the central symbol on the respective module. In addition, the device name in which it is used is specified.




Inputs
