LED Ceiling Spot WW



TECHNICAL DATA

  • LED Type: WW LED
  • Colour Temperature: 3000 Kelvin Warm White
  • Light Output: 804 Lumen
  • Dimming: 1 – 100% PWM
  • PWM Signal: 125 – 500Hz
  • Beam Angle 120°
  • Power Supply: 24VDC SELV(-10%…+5%)
  • Power Consumption:
    • Warm White: 9.4W
  • Operating Temperature: 0° – 50°C
  • Protection: IP 20
  • Colour Rendering Index (CRI): Ra: 80 (Typically 82)
  • Surface Temperature: 60°C at room temperature (25°C)
  • Dimensions:
    • D= 80mm
    • H= 60mm
  • Reverse Voltage Protection
  • Grouped via hardware (wiring)
  • Wiring type: RGBW Tree/Air Dimmer

CONNECTION

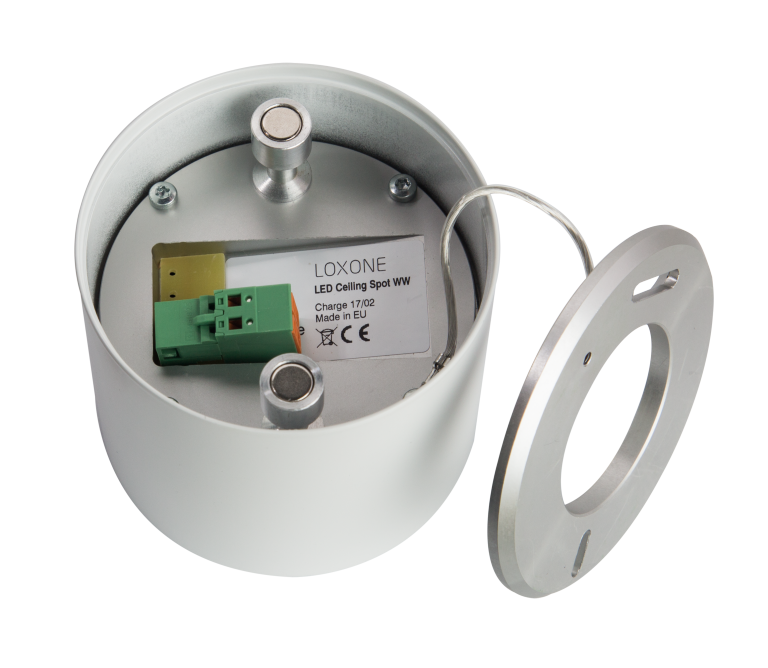

The LED Ceiling Spot WW has a 24V and Negative connector built in.


WIRING
