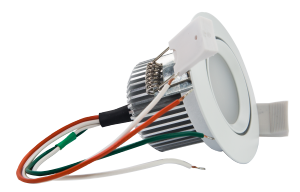

LED Spot RGBW Tree



TECHNICAL DATA

  • LED Type: RGBW LED
  • Colour Temperature: 3000 Kelvin Warm White
  • Light Output: 450 Lumen
  • Dimming: 1 – 100% PWM
  • PWM Signal: 125 – 500Hz
  • Beam Angle 120°
  • Tilt Angle: 45°
  • LED count: 12 Multichips for RGBW & 4 High-Powered for WW
  • Power Supply: 24VDC SELV(-10%…+5%)
  • Power Consumption:
    • Red: 2.2W
    • Green: 1.5W
    • Blue: 1.5W
    • Warm White: 5.5W
  • Operating Temperature: 0° – 55°C
  • Protection: IP 20
  • Colour Rendering Index (CRI): Ra: 80 (Typically 82)
  • Surface Temperature: <45°C at room temperature (25°C)
  • Depth: 60mm
  • Mounting Diameter: 68-72mm



COMMISSIONING

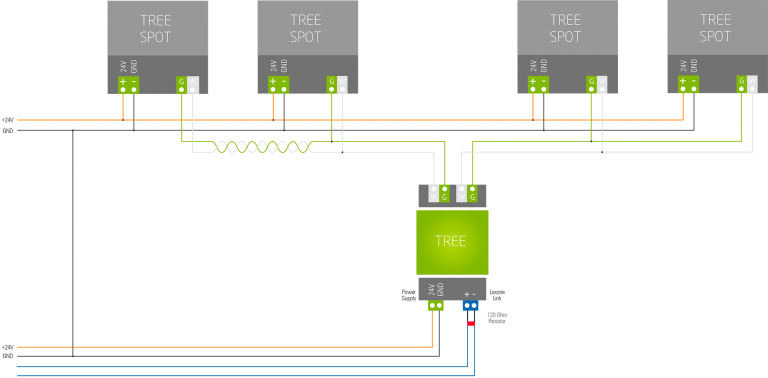

To connect the LED Spot Tree RGBW you must connect 24VDC supply Voltage (orange / white wires) and the Tree network (green / white wires) to their respective CAT7 cores.
