Music Overview

USE

With this block, you can control all music server zones from one block.




BASIC PROGRAMMING

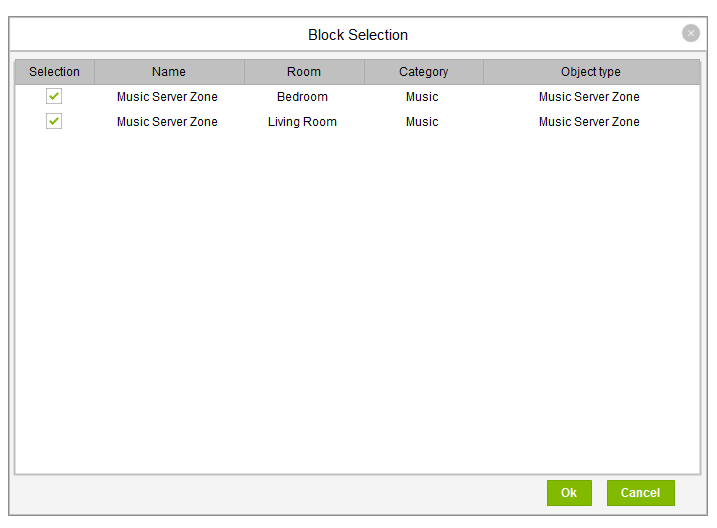

By double-clicking on the block you will open this window:




You can select the select the Music Server Zones that are to be controlled by this overivew and can then be passed commands from the block or user interface.

Overview commands are also not blocked by an active Dis input on the respective module. The Dis input only refers to the input connections on the left side of the blocks themselves. The function blocks can still be operated via the app and the overview block.

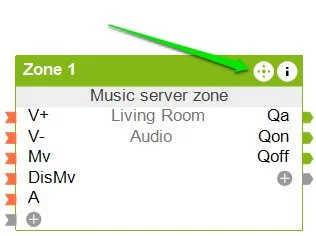

If a function block is used in the overview, this is indicated by the central symbol in the respective module. In addition, the device name in which it is used is specified.

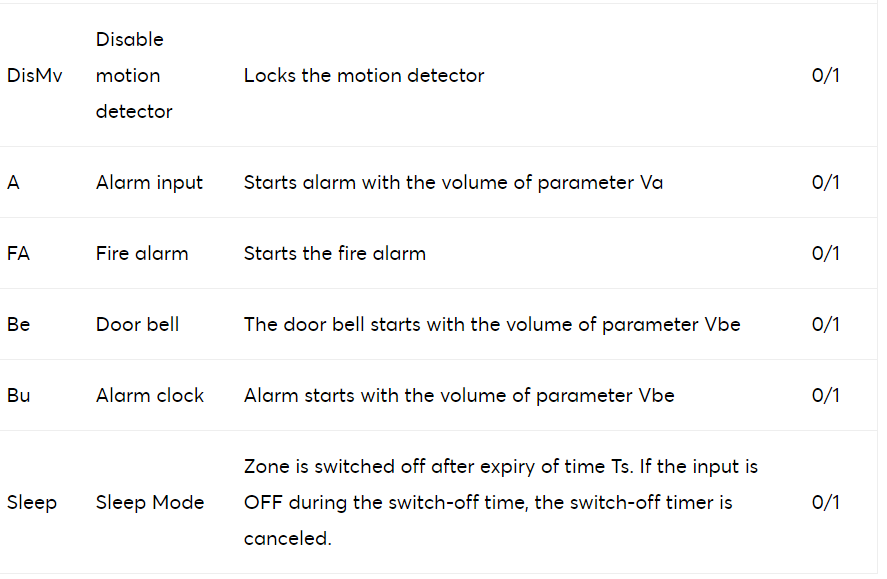

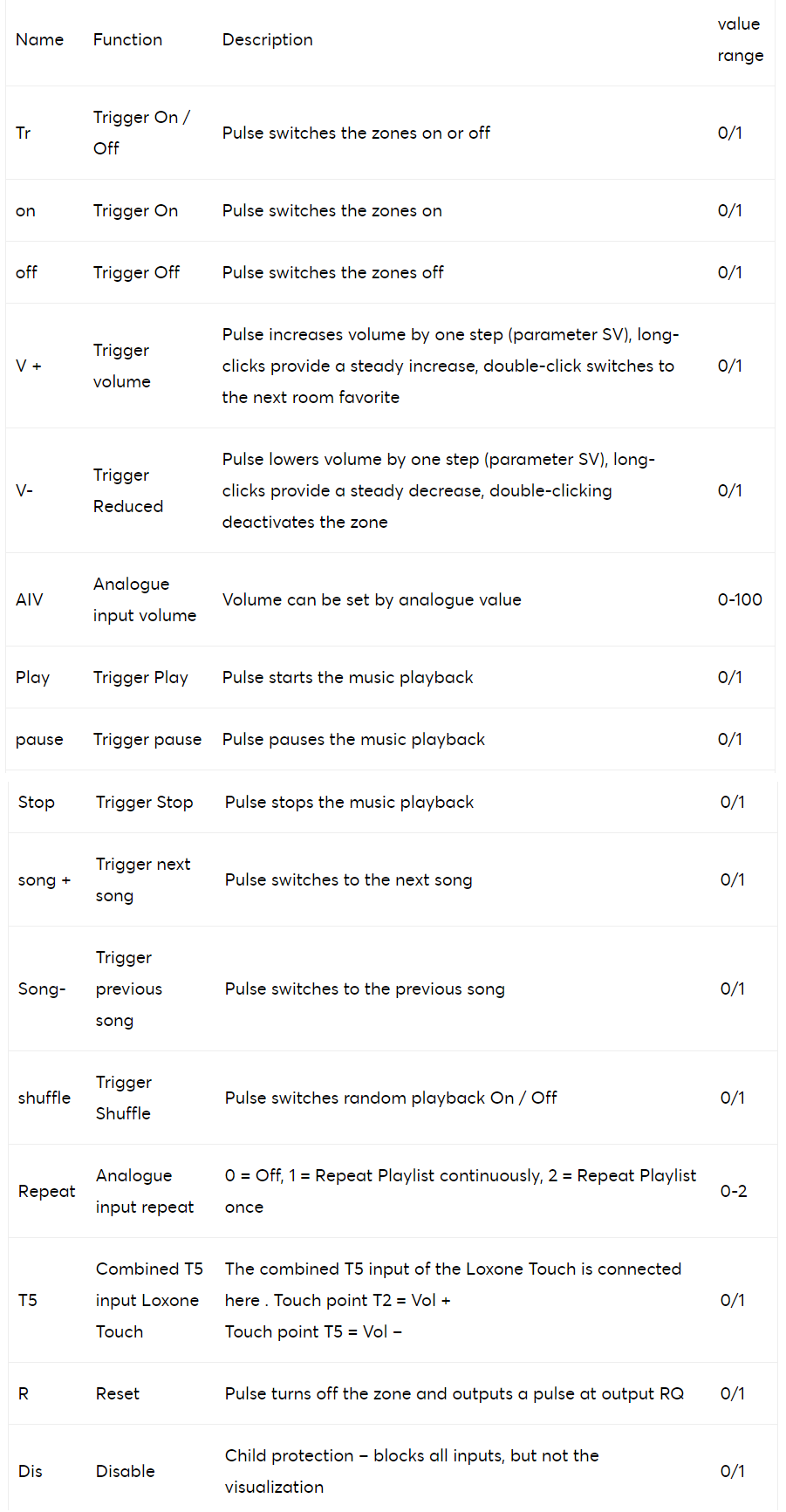

inputs
