NFC Code Touch

TECHNICAL DATA:



NFC Code touch.jpg

POWER SUPPLY:

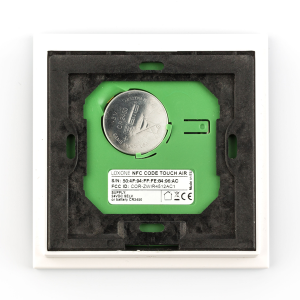

The NFC Code Touch Air can be powered either through the means of a 3V 2450 Lithium Cell battery or by a constant signal of 24 volts.

The NFC Code Touch Air can be powered either through the means of a 3V 2450 Lithium Cell battery or by a constant signal of 24 volts.

The NFC Code Touch Tree accepts only permanent power to it. On the back, there is an Orange/White pair.

The NFC Code Touch Tree accepts only permanent power to it. On the back, there is an Orange/White pair.



VARIANT FEATURES:

Loxone NFC Code touch.jpg

MOUNTING:

The NFC Code Touch can be mounted on a 68mm mounting box with the included mounting frame.

The NFC Code touch is installed on the desired surface using the enclosed mounting frame. To ensure a secure installation, the mounting frame must lie flat on the wall. The NFC Code Touch must then be attached to the frame from the top side and then clipped onto the frame. This is to ensure a watertight seal for outdoor use. In order to remove the NFC Code touch, simply pull on the lower side to release the clip.
