NFC Code Touch

TECHNICAL DATA:


POWER SUPPLY:

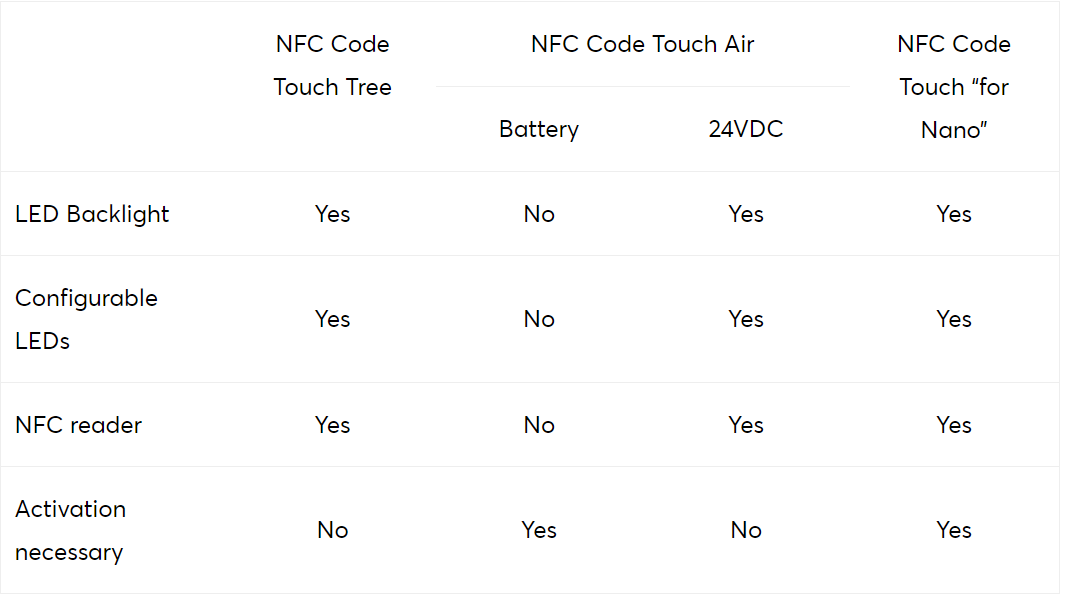

VARIANT FEATURES:


CONFIGURING TREE:

Detailed instructions on how to setup and configure a Tree device can be found here.

CONFIGURING AIR:

Detailed instructions on how to setup and configure an Air device can be found here.

CONFIGURING FOR NANO

The NFC Code Touch for Nano can NOT be used as a plug-in module for the Nano Dimmer Air

The NFC Code Touch for Nano can only be used in combination with the Nano IO Air.

MOUNTING:

The NFC Code Touch can be mounted on a 68mm mounting box with the included mounting frame.

The NFC Code touch is installed on the desired surface using the enclosed mounting frame. To ensure a secure installation, the mounting frame must lie flat on the wall. The NFC Code Touch must then be attached to the frame from the top side and then clipped onto the frame. This is to ensure a watertight seal for outdoor use. In order to remove the NFC Code touch, simply pull on the lower side to release the clip.

PROGRAMMING IN CONFIG:

Once an NFC Code Touch has been learned into Loxone Config

Quick Connection guide for NFC Code Touch Air (pdf)

Quick Connection guide for NFC Code Touch Air Tree (pdf)

Quick Connection guide for NFC Code Touch for Nano (pdf)
