Presence

INFORMATION

Once the Tr input is triggered on the output Q is also enabled. When the Tr output goes back to off the output Q will remain on for the duration of the parameter T. Every time there is Tr goes to off (falling edge) the delay counter T will be restarted.

If the input R is activated then the output Q is disabled.

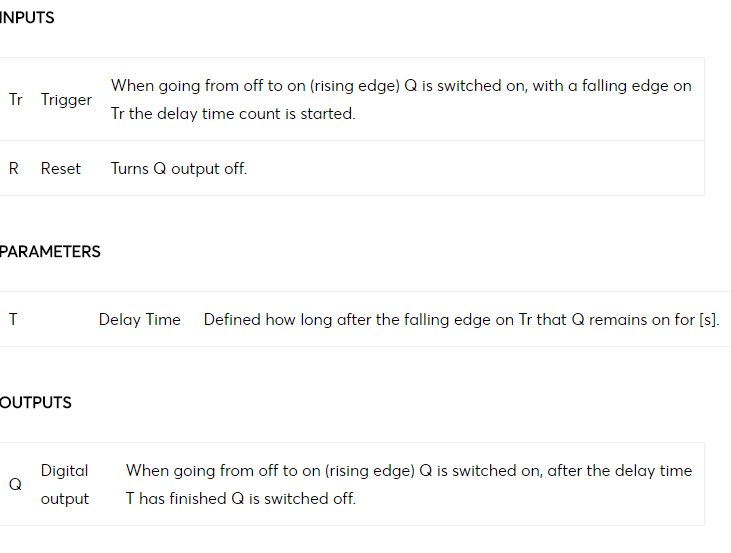

OVERVIEW
