RGB Mood Controller

Application

This module allows the creation of different light moods which can individually red, green, blue as well as a combination of all three colours.

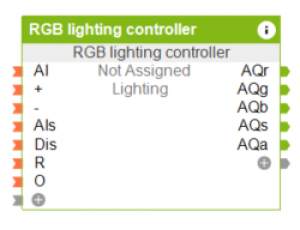

Basic programming

The moods can be switched by using the “+” input, whereby the colour can either be split into RGB or combined at output of AQa.

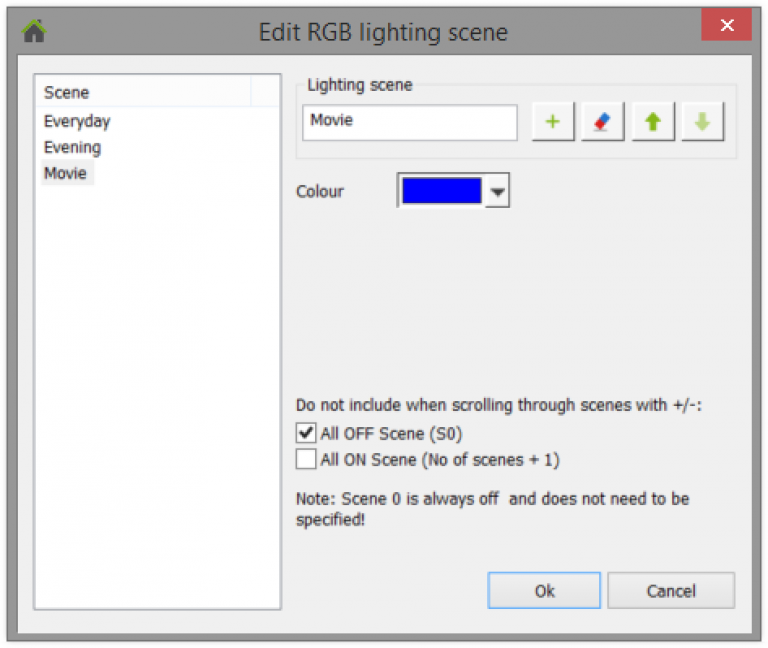

By double-clicking on the block, the light moods can be defined and edited.




Inputs


Outputs
