RS232 Extension

TECHNICAL DATA

  • Adjustable baud rate
  • Adjustable date format
  • Adjustable protocol
  • Power supply 24VDC
  • Dimensions: 35.5 x 88 x 57 mm (2 TE)
  • Power consumption approximately 30mA
  • Protection: IP20
  • Ambient temperature: 0 to 50°C





INSTALLATION

  • Mount the RS232 Extension on the DIN rail
  • Connect 24VDC power supply, but do not switch on until the whole installation is completed
    (We recommend looping through the Miniserver)
  • Connect the Loxone Link
  • Connect the RS232 Extension to an RS232 device.
  • Note: If it is the last extension, terminate the Loxone Link with a 120Ω resistor (Included with the Miniserver)
  • Turn on the power supply
  • After a few seconds, the left LED will flash green if the extension is already configured, or orange if not

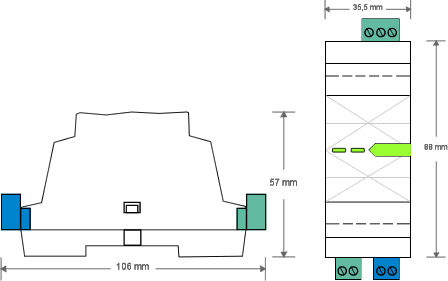

DIMENSIONS
