Saving Switch-On Delay

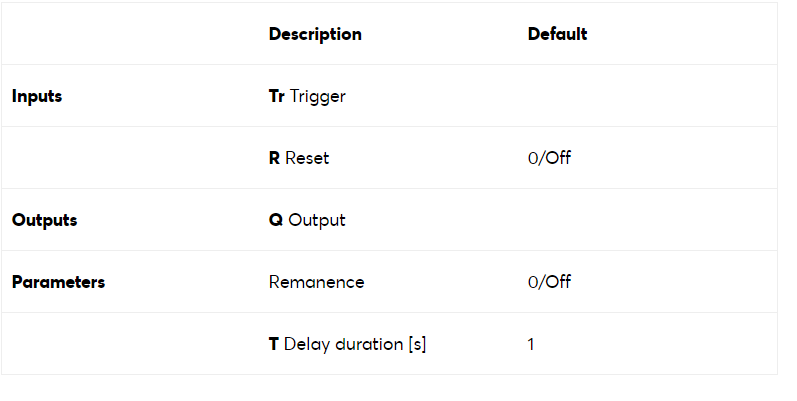

Following a pulse at the input (Tr) the output switches on after a delay until reset through input (R).

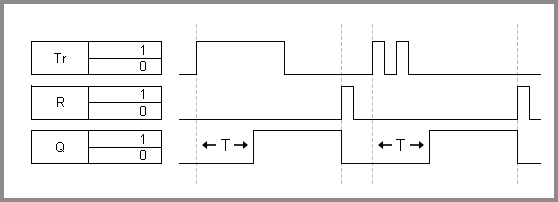

After a rising edge at the input Tr, the output Q is activated after a delay which is set through the parameter T. Any subsequent rising edges at Tr have no effect on the state of Q.
When R is then triggered the block timer is reset and the output Q is disabled. Then a new rising edge at the input Tr will activate the output after delay T.
The block can be set to be retentive, this is done by clicking on the battery symbol to set the red NOT dot on the block (input is by default inactive).
