Security Overview

USE

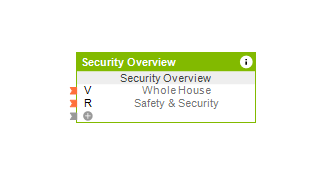

The Security Overview block can be used to control other burglar alarm blocks.




BASIC PROGRAMMING

By double clicking on the block, you will open this window




Here you need to select wich Burglar Alarm function blocks you wish the Security Overview to be able to control and show control for in the User Interface.

Central commands from blocks like this are also not inhibited by an active Dis input on the respective module. The Dis input only refers to the input connections on the left side of the blocks themselves. The program blocks can still be operated via the user interface and the overview block.

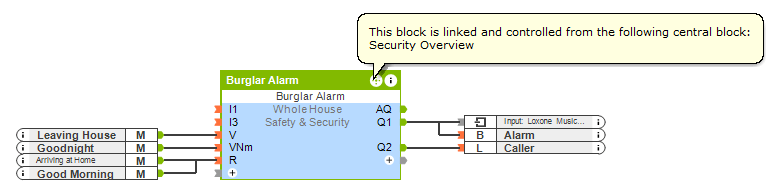

If a program block is used in the central module, this is indicated by the central symbol on the respective module in the top right-hand corner. In addition, the device name in which it is used is specified when hovering over for further information.




INPUTS
