Selection Switch (+)

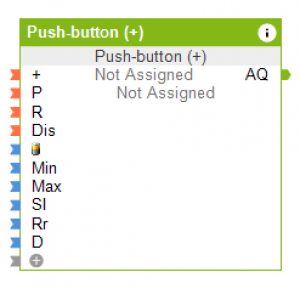

In versions prior to 9.0.x.x the Selection Switch + was known as the Push-Button +, the functionality remains the same.

APPLICATION

An analogue value can be incrementally increased by pushbutton pressure by means of the program module selection key.

BASIC PROGRAMMING




With each pulse into the input +, the value at output AQ is increased by the value SI until the value of Max has been reached and then starts again at value Min.
If the input + held down and selected for longer, during this constant signal, several increases are performed at output AQ depending on the set repetition rate (parameter Rr).

The value range at output AQ can be defined by the two parameters Min (minimum value) and Max (maximum value).

The value at output AQ can be set directly via input P. For example, if the value 5 is applied to the input P, the value 5 is sent through to output AQ.

By a pulse from input R, output AQ is set to the default value (parameter D).

If input Dis is activated, the inputs are disabled. However, the block can still be operated via the user interface.

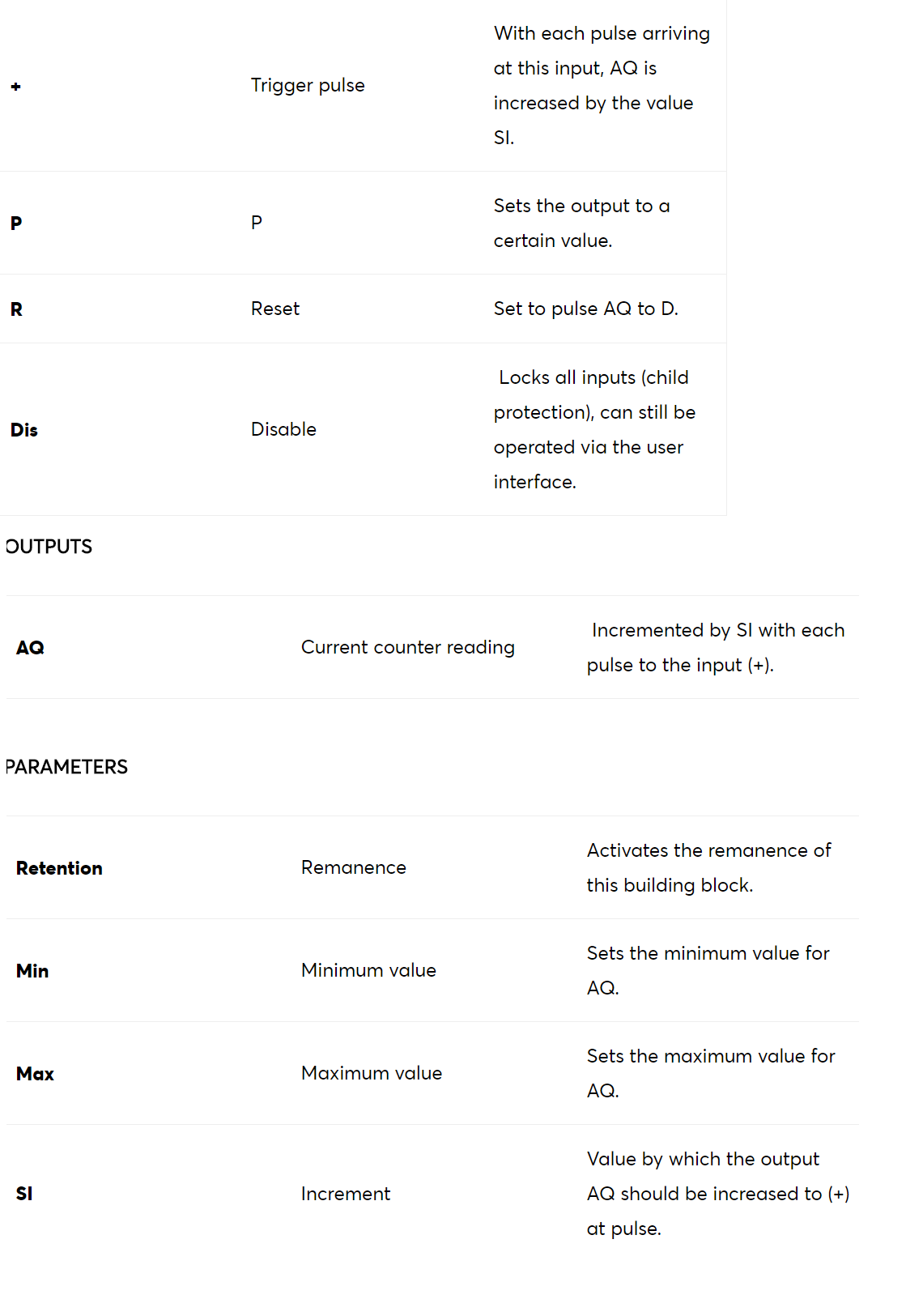

INPUTS
