Shading Overview

USE

This block allows you to control all automatic blinds blocks from a central, single block.




BASIC PROGRAMMING

By double-clicking on the block, you will open this window:




You can select the blocks in which the actions are to be carried out.

Overview commands are also not blocked by an active Dis input on the respective module. The Dis input only refers to the input connections on the left side of the blocks themselves. The function blocks can still be operated via the app and the overview block.

If a function block is used in the overview, this is indicated by the central symbol on the respective blocks. In addition, the block name in which it is associated is specified.

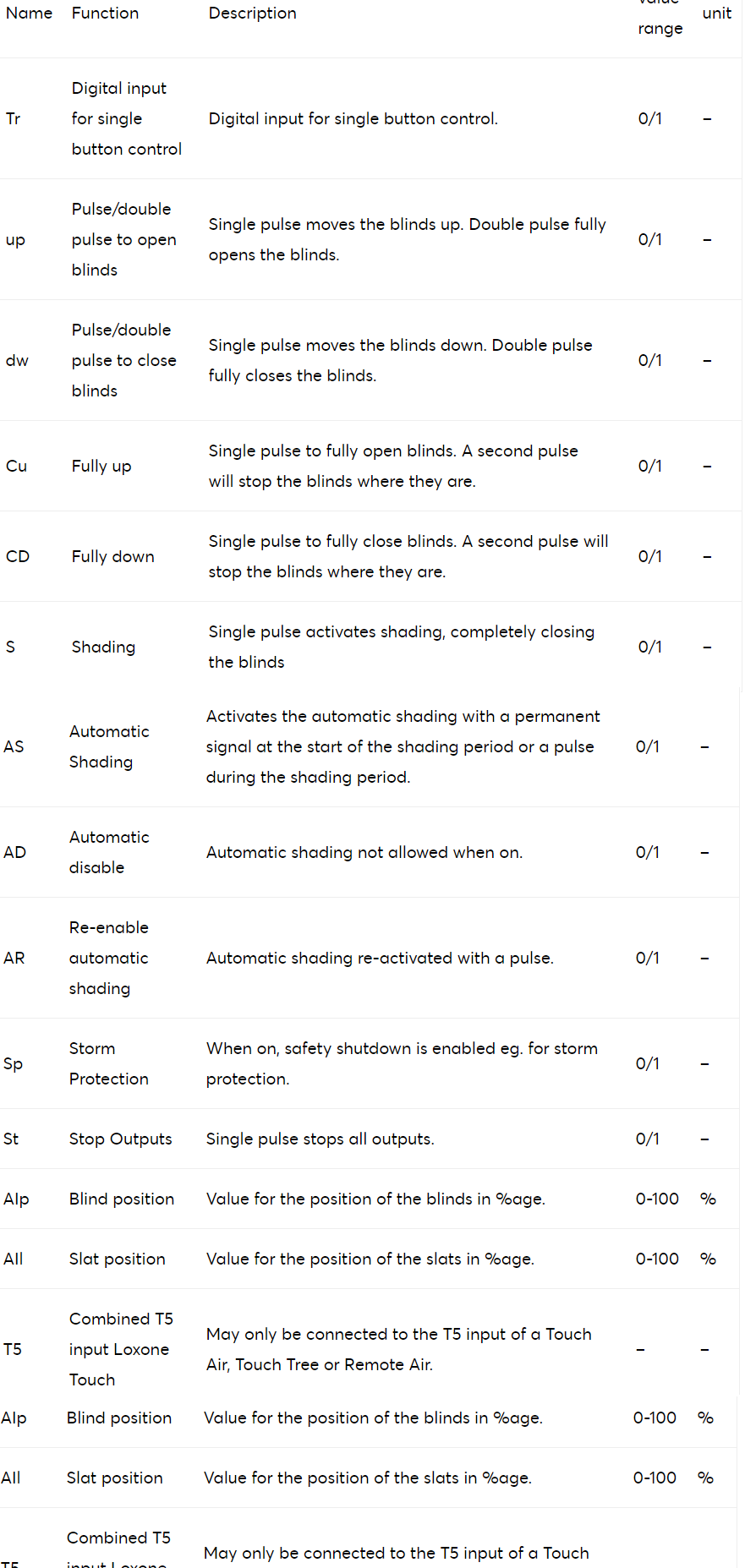

INPUTS
