Stepper

INFORMATION

The analogue value at the output AQ is incremented or decremented according to pulses on the trigger Tr. The direction in which the AQ value changes can be set with parameter Dir. By default the stepper increments. The size of each step is set with parameter SI and the maximum value for AQ is set with parameter M.

A pulse on the input R will reset AQ back to 0.

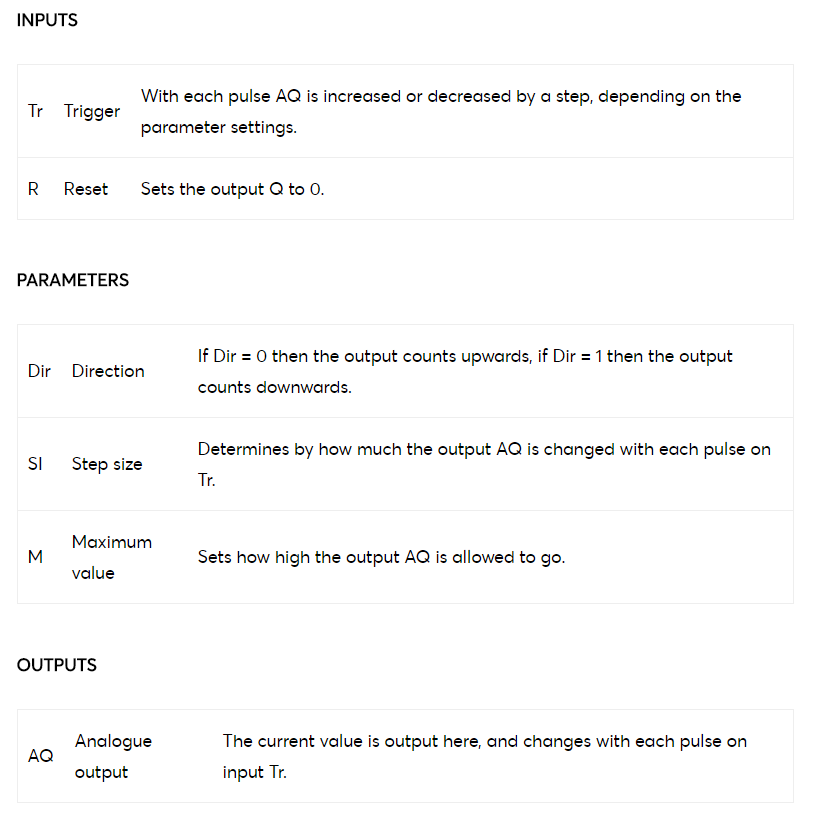

OVERVIEW
