Touch Tree

TECHNICAL SPECIFICATIONS

  • Power supply: 24 VDC
  • Power consumption: 115mW ~
  • Temperature & humidity measurement *
  • 5 touch points
  • Optional click feedback when touched
  • Status LED
  • Temperature measuring range: -20 … + 80 ° C
  • Temperature tolerance: +/- 0.5 ° C
  • Measuring range Humidity: 0 – 100%
  • Moisture tolerance: +/- 2% RH
  • Ambient temperature: 0 … + 55 ° C
  • Dimensions: 55mm x 55mm without frame
  • Cable diameter 0.25-0.8 mm²
  • Stripped cable length: 5mm
  • Protection

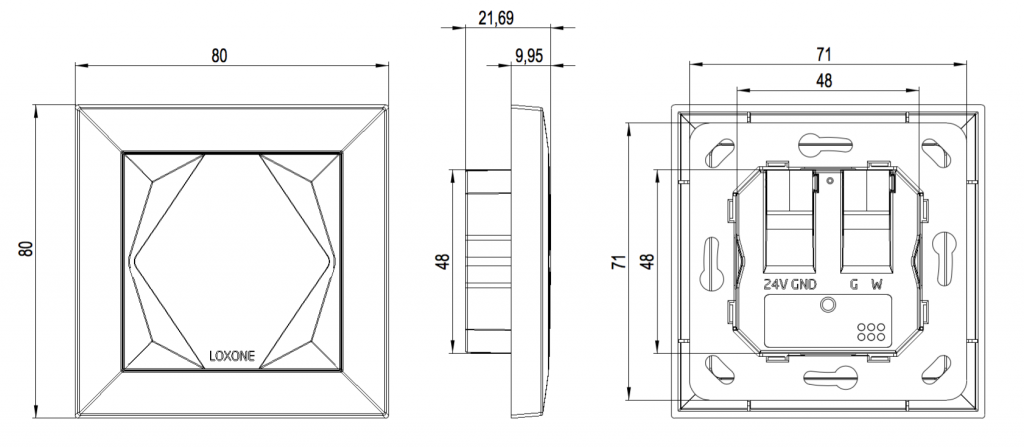

Loxone Touch Tree.png

dimensions i mm

Please note temperature and humidity is sensed through the touch trees closed housing which can mean a delay in sensing time. For the rapid detection of changes in the ambient humidity (eg. For ventilation control in the bathroom), we recommend a sensor with an open housing design as the Loxone Temperature & Humidity Sensor Air.

MOUNTING SUGGESTIONS

The Loxone Touch, Touch Pure and Motion sensor Tree are very slimline, as such we recommend using/specifying European style circular back-boxes for the best fitment and finish. An example of this can be seen below, click on the image to purchase them.


SETUP

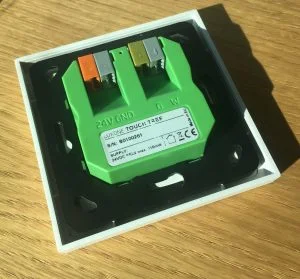

To connect the Touch tree connect the 24V power (orange/Orange-white terminals) and the Tree terminals (Green/Green-white terminals). The device will flash orange when connected.








TOUCH POINTS

The touch points may be used in Loxone Config as digital inputs. Every touch point is a digital input.

For Press and Hold, you will need to set the ‘Receive Timeout’ properties of the Digital Input to 0.

COMBINED KEY T5

The T5 output combines all 5 of the digital outputs of the Touch tree. This is designed to speed up the programming of the Loxone standard.
The following functions are supported here:

  • Automatic blinds: inputs Cu (touch point 1) and Cd (touch point 4)
  • Light Control: Scene + (touch point 3)
  • Music Server Zone: inputs V + (touch point 2) and V- (touch point 5)
  • Central block control (double/triple click of centre key)

Connect the T5 output to the T5 input of the desired blocks.
In order to program and user-defined functions, ensure check boxes for inputs are activate in properties.
